| Features |

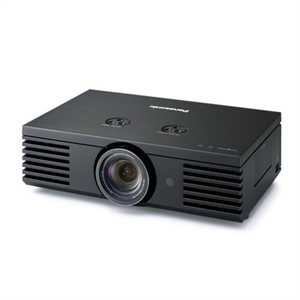

The PANASONIC PTAE1000 LCD HOME CINEMA PROJECTOR Panasonics highly anticipated highly specified adventure into 1080p home cinema projection. The AE1000 promises so much in addition to its 1920 x 1080 resolution; 11000:1 contrast is detailed alongside an impressive brightness and twin HDMIs. The PTAE1000 looks nothing like Panasonics previous PTAE variants in that it cuts a rather attractive lens centered figure traditionally popular on higher end models. | | Technical Specifications | Power supply 100–240 V AC, 50/60 Hz | Power consumption 240 W (Approx. 0.08 W in standby mode with fan stopped) | LCD | panel *1 Panel size 0.74" diagonally | Aspect ratio 16:9 aspect ratio | Display method Transparent LCD panel (x 3, R/G/B) | Drive method Active matrix | Pixels 2,073,600 (1,920 x 1,080) x 3, total of 6,220,800 pixels | Lens Powered zoom (2x)/powered focus, F 1.9-3.2, f 22.4 mm-44.8 mm | Lamp *2 165 W UHM™ lamp | Brightness 1,100 lumens *3 | Contrast 11,000:1 *3 (full on/full off) | Center-to-corner uniformity ratio 85% | Colors Full color (1,070,000,000 colors) | Projection size 1,016–5,080 mm (40-200 inches) diagonally, 16:9 aspect ratio | Throw distance 1.2 m -12.0 m (311"- 408") | Screen aspect ratio 16:9 (4:3 compatible) | Resolution RGB: 1,920 x 1,080 pixels | Scanning frequency for RGB Horizontal: 30-70 kHz, Vertical: 50-87 Hz | YPBPR signal compatibility 525i (480i), 525p (480p), 625i (576i), | 625p (576p), 750 (720)/50p, | 750 (720)/60p, 1,125 (1,080)/24p, | 1,125 (1,080)/50i, 1,125 (1,080)/50p, | 1,125 (1,080)/60i, 1,125 (1,080)/60p | Color system PAL, PAL-M, PAL-N, PAL 60, SECAM, NTSC, NTSC 4.43 | Optical axis shift *4 Horizontal ±40% and vertical ±100% | Keystone correction range Vertical: approx. ±30° | Installation Ceiling/desk, front/rear (menu selection) | OSD languages English, French, German, Spanish, | Italian, Chinese, Korean, Russian, | Swedish, Danish, Norwegian, Polish, | Czech, Hungarian, Portuguese, Thai | Terminals S-VIDEO IN Mini DIN 4-pin x 1 | VIDEO IN RCA pin x 1 | PC(RGB) IN D-sub HD 15-pin (female) x 1 | COMPONENT IN PT-AE1000U: RCA pin (Y, PB/CB, PR/CR) x2 | PT-AE1000E: RCA pin (Y, PB/CB, PR/CR) x1 | SCART IN 21-pin x 1 for PT-AE1000E only | HDMI IN 19-pin HDMI connector x 2 | SERIAL D-sub 9-pin x 1 (RS-232C based) | Power cord length 3m (910") | Cabinet material ABS/PC | Dimensions *5 (W x H x D) 460 x 130 x 300 mm (18-1/8" x 5-1/8" x 11-25/32") | Weight 7.2 kg (15.9 lbs.) | Operating environment Temperature: 0° - 40°C (32°-104°F) | Humidity: 20% - 80% (no condensation) | Remotecontrol unit Power supply 3 V DC (UM-3 (AA) battery x 2) | Operation range Approx. 7 m (23) when operated from directly in front of the signal receptor | Dimensions | (W x H x D) 52 x 200 x 28.5 mm | (2-1/16" x 7-27/32" x 1-1/8") | Weight 170 g (6 oz.) (including batteries) | Supplied accessories Power cord, Wireless remote control unit, Batteries for remote control (UM-3 x 2) | Optional accessories ET-LAE1000 Replacement lamp unit | ET-PKE1000S Ceiling mount bracket | ET-PKX100 Ceiling mount bracket for high ceilings | ET-PCE1000 Cable cover |
|
|
