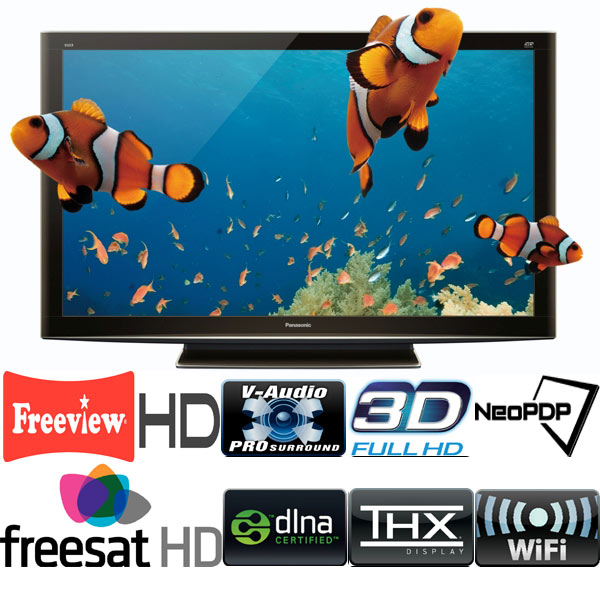

| 42" (106 cm) FULL HD 3D Plasma with Infinite Black Pro, 600Hz Sub-field Drive Intelligent Frame Creation Pro and THX Mode Specifications |
| TV Tuner | Integrated Tuners*** PAL-I, DVB-T/T2/S | Teletext Reception 1500P | 3D Colour Management yes | Picture Mode Dynamic/Normal/THX/Cinema/Game/Photo/Pro1/Pro2 (ISFccc) | Vreal Vreal Pro 5 3D | Sound | Speakers 3 x 10 watt 2.1 ch, 3 Speakers | Sound Mode Music/Speech/User | Virtual Surround V-Audio ProSurround | Dolby Digital Out/CONEQ Dolby Digital Plus/CONEQ | Input/Output | CI (Common Interface)* yes | VIERA Image Viewer yes (AVCHD/SD-VIDEO/DivXHD/JPEG/MP3/AAC playback) | USB 2 (side); Flash Memory/Keyboard/WiFi/USB HDD Recording/HUB | HDMI Input/ Support Feature 4 (1 side, 3 rear)/ Audio Return Channel (Input 2) / 3D Input (Input 2) | Composite Video Input AV3: RCA phono type x 1 (side) | Audio Input (for Video) AV3: RCA phono type connectors (L, R) (1 set, side) | Component Video Input RCA phono type x 3 [Y , PB, PR] (rear) | PC Input Mini D-sub 15-pin x 1 (rear) | Audio Input (for HDMI, PC, Component) RCA phono type connectors (L, R) (1 set, rear) | 21-Pin Input/Output AV1: AV In/Out, RGB In, Q-Link (rear) / AV2: AV In/Out, S-Video In, RGB In, Q-Link (rear) | LAN Port yes | Analogue Audio Out RCA phono type connectors (L, R) (1 set rear) | Digital Audio Output (Optical) yes | Headphone Jack 1 (side) | Service Port yes | Features | Wireless LAN Adaptor**** yes | EPG yes | VIERA CAST yes | VIERA Tools yes | DLNA yes | VIERA Link yes (HDAVI Control 5) | Multi Window PIP/PAP/PAT | C.A.T.S. (Contrast Automatic Tracking System) yes | Game Mode yes | Q-Link yes | Off Timer yes | Child Lock yes | General | Power Save Mode yes | Power Supply AC 220 - 240 V, 50/60Hz | Rated Power Consumption TBD | On mode Average Power Consumption** TBD | Standby Power Consumption TBD | Dimensions (W x H x D) (w/o stand) 1,035 x 656 x 85 mm | Dimensions (W x H x D) (with stand) 1,035 x 695 x 308 mm | Weight (w/o stand) 21.0 kg | Weight (with stand) 24.0 kg | Wall Bracket TY-WK4P1RW | Further Specifications | NOTE * Common Interface Terminal to accommodate Conditional Access Module for additional Digital services i.e. Top-Up TV / ** Based on IEC 62087 Ed.2 measurement method. / ***Notice for DVB functions: / This TV is designed to meet the standards (current as of August, 2009) of DVB-T/C/S/S2 (MPEG2 and MPEG4-AVC [H.264]) services. / The compatibility with future DVB services is not guaranteed. / DVB-T MPEG4-AVC broadcast is available in selected countries: Denmark, Spain, Estonia, France, Lithuania, Norway, Slovenia, Sweden, Poland, Hungary, Portugal. / DVB-C feature is available only in following countries: / Sweden (ComHem, Canal Digital), Demark (YouSee), Norway (Canal Digital), Finland (Cable Ready HD), Germany, Switzerland, Netherlands / The country list above is as of January 1st, 2010. / Check the latest information on the available services at the following website (English only): / http://panasonic.jp/support/global/cs/tv/ / ****Depending on the area, this accessory may not be included. |
|
|
