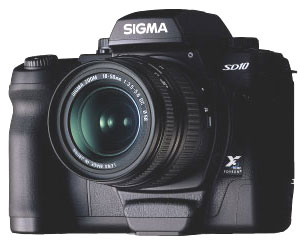

| The SD10, powered by Foveon X3 image sensors captures red, green and blue light at each and every pixel. All other image sensors feature just one layer of photodetectors, with just one photodetector per pixel. To capture colour, pixels are organized in a grid, or mosaic, resembling a three-colour checkerboard. Each pixel capture just one colour-red, green or blue. The filters let only one wavelength of light (red, green or blue) pass through to any given pixel, allowing it to record only one colour. As a result, mosaic sensors capture only 25% of the red and blue light, and just 50% of the green. |
| RAW Image Format | With the RAW data recording system of the SIGMA SD10, it is possible to obtain high picture definition and compact file size. The lossless compression system of RAW data, eliminates image deterioration, provides superior pictures, without sacrificing original image quality and retains full image capture details. | | | Three Resolution Settings | Depending on the intention of the photographer, the SIGMA SD10 allows photographers to capture RAW data images in one of three resolutions. | | HI mode (2268 x 1512 x 3 layers) delivers highest resolution image performance. | MED mode (1512 x 1008 x 3 layers) has high definition and recording capacity. | LOW mode (1134 x 756 x 3 layers) for capturing the most images per given memory capacity. | | ISO 100-1600 setting | In Default or normal mode the ISO sensitivity of SD10 can be set to 100, 200, 400 and 800. If Extended Mode is selected, it is possible to use ISO 1600 sensitivity. In any ISO sensitivity setting, it is possible to select a high shutter speed from 1/6000 sec. to a slow shutter speed of 30secs. | | | Image Sensor Dust Protector | Most digital SLR cameras are typically vulnerable to dust entering the body especially when the lens is dismounted for changing. Dust and dirt entering through the lens mount of a digital camera, can create serious defects in image quality. The dust protector of the SIGMA SD10 prevents dust from entering and adhering to the image sensor. Even if dust adheres to the dust protector it will not have an influence on image quality, because the dust protector is located away from the image sensor and is therefore out of focus. | | | The Sports Finder | The coverage of a viewfinder of a digital SLR camera with interchangeable lens is almost the same as the picture seen on its image sensor. However, the coverage of viewfinder can be maximum 100%, and no portions of the outside area projected on the image sensor can be seen. The SD9 is equipped with a "sport finder" for easily following the situation outside the picture area. The area that is out of the image sensor coverage range is marked by transparent light gray, to distinguish it from the active picture taking area. | | | Intuitive Interface | Clearly marked operation panel buttons make it easy for photographers to identify and use desired functions. Each button of the Sigma SD10 is devised and arranged to provide a functional and easy-to-use setting. The SD-10 is probably the most user-friendly digital SLR. It is always ready to shoot, even when reviewing earlier images. | | | Mirror lock-up Mechanism Prevents Camera Shake | The mirror lock-up mechanism raises the mirror thus preventing vibration when the shutter is released. This prevents camera shake, and is especially effective for macro photography, shooting scenes using telephoto lenses or scientific work. Use of a remote controller or cable release (sold separately) also reduces the possibility of camera shake. | | | Exposure Compensation and Auto Bracketing | It is possible to adjust exposure in 1/3 EV steps increments up to ±3 EV from the auto-exposure level set for the scene. In situations where it is difficult to determine proper exposure, the auto bracketing function allows a sequence of pictures to be taken of the same subject at three different exposure levels; Appropriate Exposure, Under Exposure and Over Exposure. | | | Non-stop shooting up to 30 frames | A high-speed CPU and high-volume buffer memory enable the SD10 to shoot at 2.5 frames per second for up to 30 consecutive frames in LOW mode, up to 14 consecutive frames in MED mode, and up to 6 frames in high-quality HI mode. | | | IEEE1394 & USB Interfaces | The Sigma SD10 can transmit the images from camera to computer with high-speed Firewire (IEEE1394) (S400) and widely available USB interfaces. | | | Power Source | SD10 can be powered by two CR-V3 lithium batteries or four "AA" Ni-Mh batteries or four Nickel Zinc primary batteries or a dedicated AC adapter (included with the camera). Optional battery pack can hold four CR-V3 batteries or eight AA batteries more than enough power for most shoots. When using the camera indoors for an extended period of time or transferring the imaged to the computer, it is advisable to power the camera from a socket using the AC Adapter (provided). | | | Recording on CF cards and Microdrives | The Sigma SD10 records on reliable, high capacity Type I and Type II CF (CompactFlash) cards or a Microdrive to hold larger volumes of data. | | | 1.8in. type TFT Monitor | The SIGMA SD10 is equipped with a large 1.8in. approximately 130,000 dot low temperature polysilicon TFT-LCD monitor with white LED on the back panel, which displays images, menus and histogram. The coverage area of the LCD monitor is 100%, of that seen from the viewfinder and thanks to the LCD-monitor, the composition can also be seen easily. | | By operation of +/- Controller, three types of screen display can be chosen; thumbnail display (9 images simultaneous display), Single-Image display, and a Zoom-in display (the area of magnification can be freely chosen by the 4-Way Controller). By pressing the INFO button, detailed image information can be displayed on the TFT-LCD monitor, such as shutter speed, aperture value etc. | | | NTSC/PAL | SIGMA SD10 camera's video output system can be switched between PAL and NTSC system. This means that video output of SIGMA SD10 pictures is possible in many parts of the world. | | | Please note: Image for illustration only. Lens not inlcuded |
|
|
